Product Detail
Product Name:

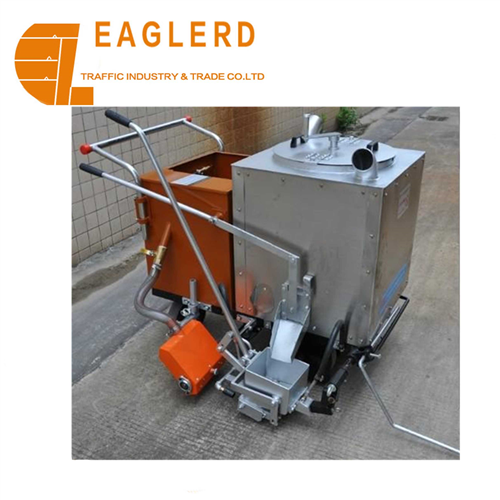

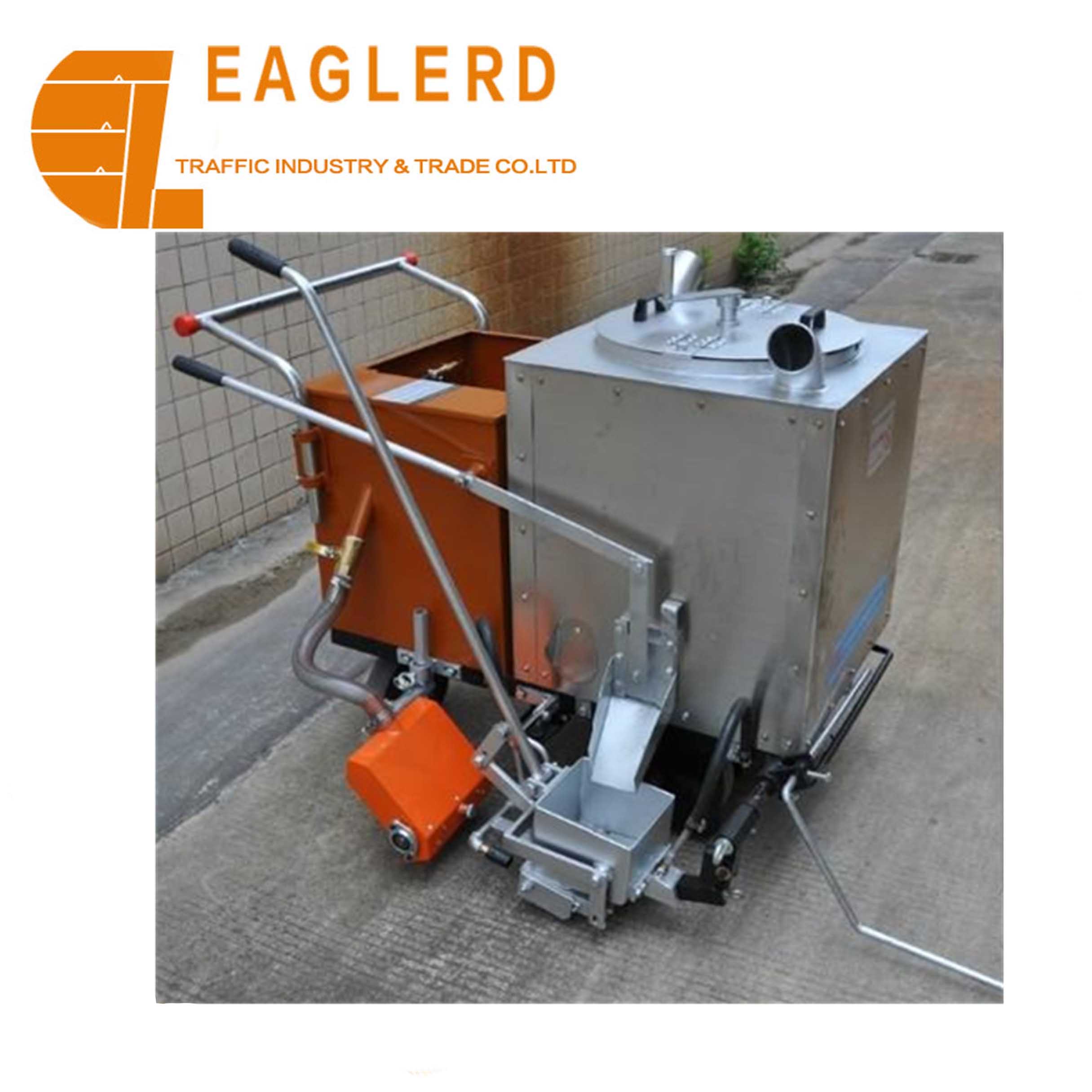

Pre-heater function integrated road marking machine

Model: EG-180
Description:

Pre-heater function integrated road marking machine

1.Paint barrels: stainless steel heater and double high-carbon steel bottom (6mm thickness), insert-type paddle mixer with 120kgs capacity.
2.glass bead storing box:10kg/box.
3.Glass beads sow browser: Synchronous clutch seeding. It can adjust glass beads sowing width according to line adjustment.
4.Marking shoes: High-precision ultra-thin material manufacturing and scraper-type structure, the standard configuration is 150mm.
5.Grounding knife:Carbide, with eccentric sleeve device can adjust the thickness from 1-2.5mm.
6.Alloy wheel: use special heat-resistant rubber, it has a positioning device upon back wheel to make sure a straight line direction.
7.Index line width:100/150/200/300mm Can be adjusted according to the project requirement.                                                                  8.Dimension and weight:1320*900*1000mm
9.Net weight:150kg
