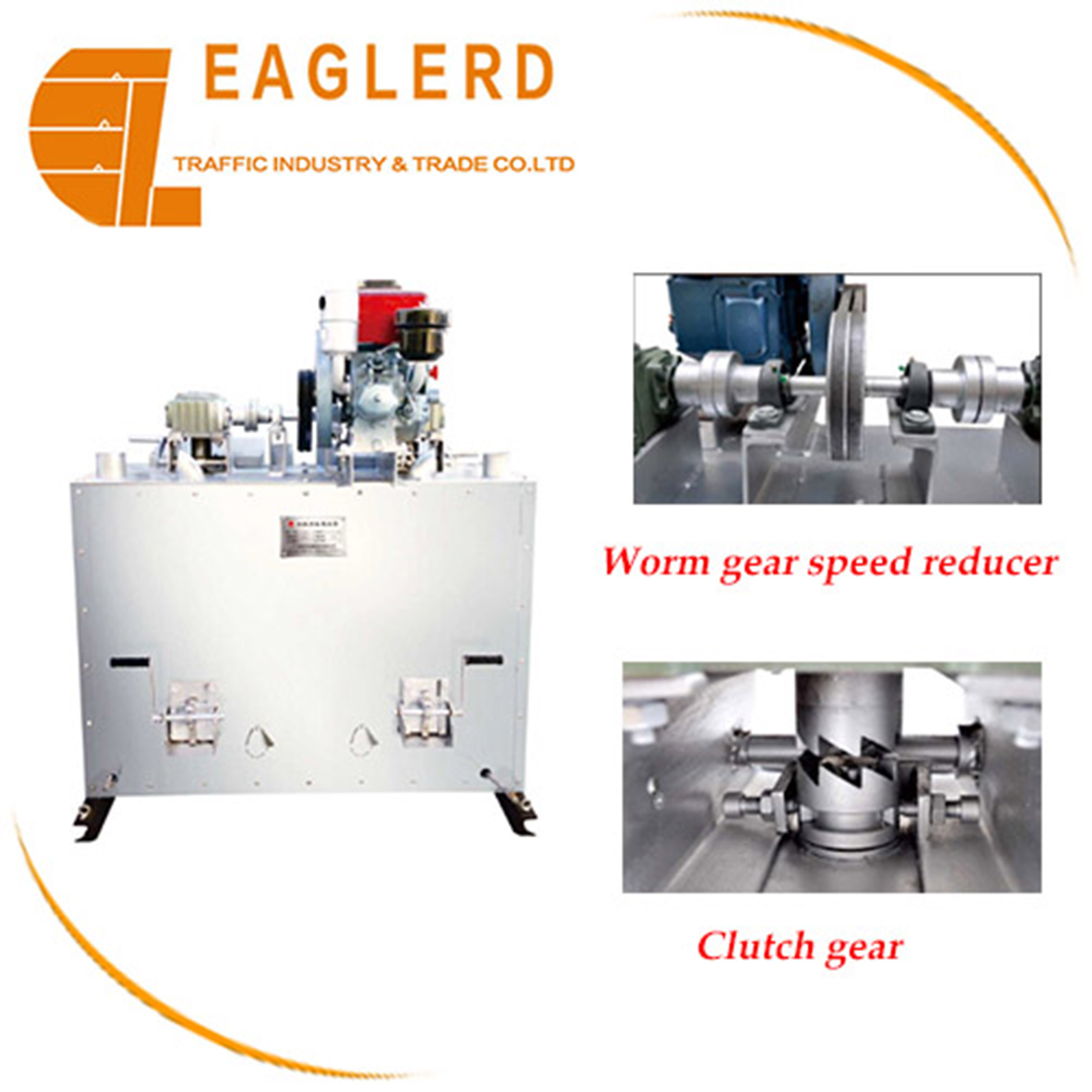

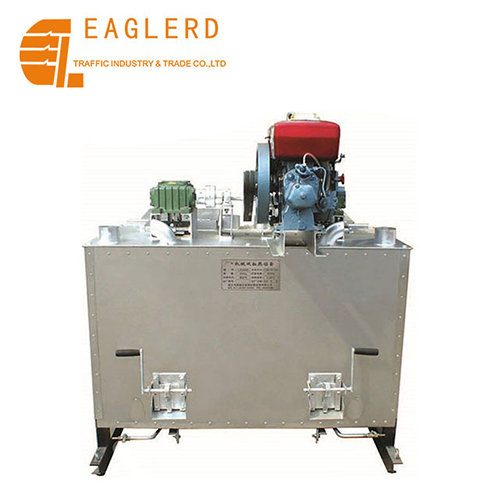

Double cylinder mechanical hot melt kettle

Double cylinder mechanical hot melt kettle

1. Engine: 8.0 PS boiling diesel of water-cooling
2. Tank capacity: 300kgх2. Cylinder body of stainless steel, pot bottom of high-carbon steel and erected oar stirrer
3. Structure: Framed structure, insulation is fixed between internal bladder and ektexine.
4. Heating system: petroleum gas (50kg per jar commended) and imported highly efficient four ring burner
5. Operation control: Hand clutch controls respectively the forward stir of the tow cylinders.
6. Safety facility: Automatic protection facility for overload is designed to guarantee the security of operating personnel when diesel and gear box separate automatically under emergent situation.
7. Dimension: 1320х1350х1450mm
8. Net weight: 500kg
