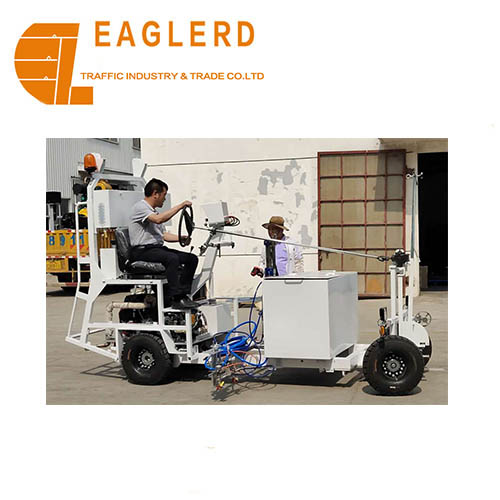

Driving type cold spraying road marking machine

Driving type thermoplastic marking machine

Marking method: Normal temperaturesolvent coating
Air compressor displacement: 0.45m3 / min
Spread glass beads: Spraying (pressure adjustable

Tank capacity: paint tank 200L
Hydraulic pump: American Graco Hydraulic pump flow: 16L / MIN
Paint pump control method: Automatic reciprocating cylinder
Marking line depth: 0.2-0.4mm (adjustable) Marking line width: 100-900mm (adjustable)
Number of spray guns: 2 pneumatic spray guns + 1 manual spray gun
Chassis parameters: 3.5 * 1.6 * 2.5m
Engine: Honda GX690 25HP Engine power: 18.3KW
Drive system: hydraulic drive stepless speed change
Driving direction and speed: front to back, 0-22km / h
Glass bead tank capacity: 56L
Weight: 2000KG
