Product Name:

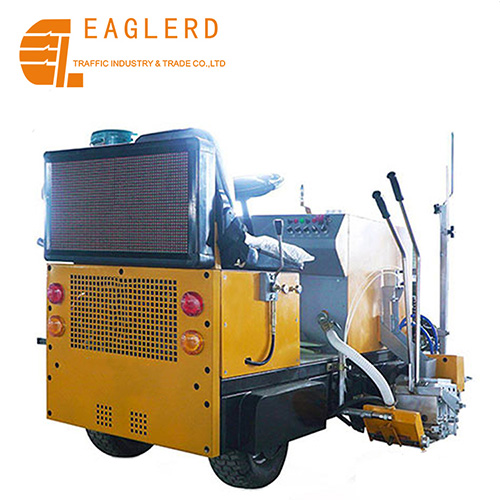

Driving type thermoplastic marking machine

Model:
Categories: Road Marking Machine
View Enlarged Image
Share
Description:

Driving type thermoplastic marking machine

1.Engine：Honda GX270（oil gas）
2.Heating mode: liquefied gas heating
3. Vehicle Control System: CPU Computer Board Imported from Siemens Germany
4. Working mode: dual mode (common marking and convex oscillation line)
5. Travel Drive System: LPG Power, Hydraulic Drive, CVT
6. Compressor: imported air compressor, air pump
7. Working Pressure: Pump Pressure 0.4-0.6KG
8. Paint barrel capacity: 0.1413 m (containing 225kg of paint)
9. Glass bead box capacity: 20KG
10. Working speed: 0-15km/h
11. Maximum climbing gradient: 60 degrees
12. Height of protrusion marking line: 0-10mm
13. Scribing width: 5.10.15.20.30.40.45 cm (bucket width can be adjusted according to engineering requirements)
14. Wheels: 2 front wheels, 2 rear wheels, inflatable rubber, 15 x 6.00-6 NHS
15. Lights: LED headlights, warning lights, steering lights, control panel display lights
16. Fuselage length, width and height: 1.9 x 1.22 x 1.3m (excluding pointers)
17. Pointer length: 2m (scalable)
18. Weight: 570KG
