Product Detail
Product Name:

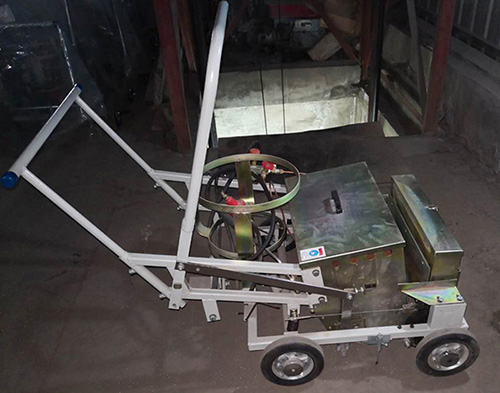

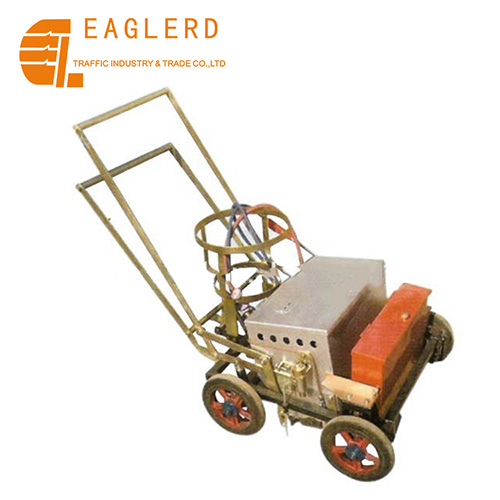

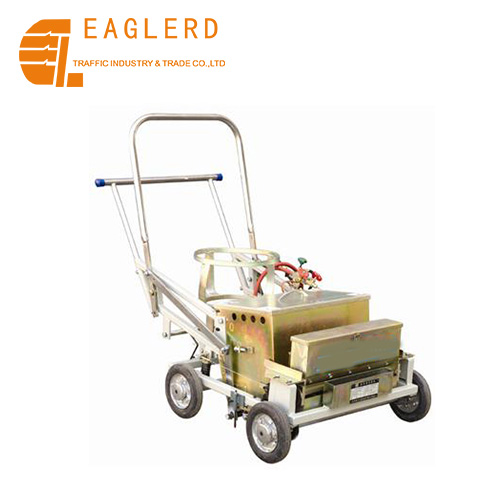

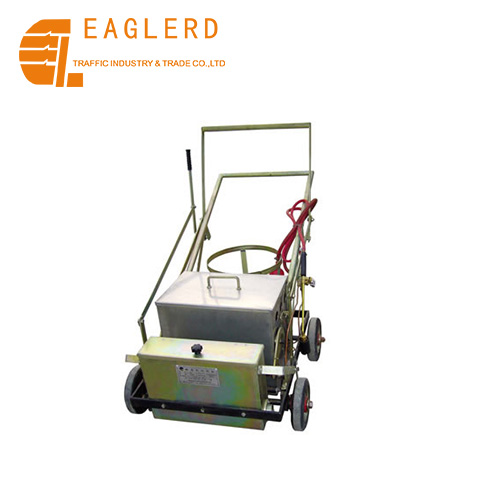

Zebra crossing hot melt marking machine


The zebra crossing hot melt marking machine is special-purpose marking equipment used for highway,urban pavement .guide arrow ,expree highway charging window guide line ,and vehicle distance confirm line.

The product consists of the chassis, paint hopper, glass bead hopper ,and gas fueled system. It is of reasonable structre, handy operation, regular line ,even spread of measurable fine glass beads.

The main technical parameters as follows:
The dimensions :1200*800*1100mm .The marking width :400/450mm .The painting thickness :1.8-4.0mm(adjustable).The heating method :petrolic liquefied gas (for heat preservation).The weight of complete machine:80kg.
